Overview

MPH
KPH
Knots

Sheet 1: MPH
Concours Gearing Table – Mark Randol, June 2003






Data obtained from Kawasaki 1986-2000 service manual






If you find errors, contact me via the COG mail list






If you make changes, put your name on it so YOU can fix the errors!














Drive Ratios 1st 2nd 3rd 4th 5th 6th
Primary drive ratio 1.73 1.73 1.73 1.73 1.73 1.73
Transmission gear ratio 3.07 2.06 1.59 1.33 1.15 0.97
Final drive ratio 2.71 2.71 2.71 2.71 2.71 2.71
total ratio 14.41 9.65 7.47 6.26 5.41 4.53









Wheel diameter Tire width Tire profile (%) Tire height Total diameter Total circumference
Rear wheel & tire circumference (in) 16 5.91 80 4.72 25.45 79.95








Speed (MPH) @ Gear ==> 1st 2nd 3rd 4th 5th 6th
red line 10500 55.16 82.42 106.49 127.06 146.83 175.47
hp peak 9500 49.91 74.57 96.35 114.96 132.84 158.75
Torque peak 6500 34.15 51.02 65.92 78.66 90.89 108.62
Idle (CA, 2000) 1200 6.3 9.42 12.17 14.52 16.78 20.05
mph/1000rpm
5.25 7.85 10.14 12.1 13.98 16.71

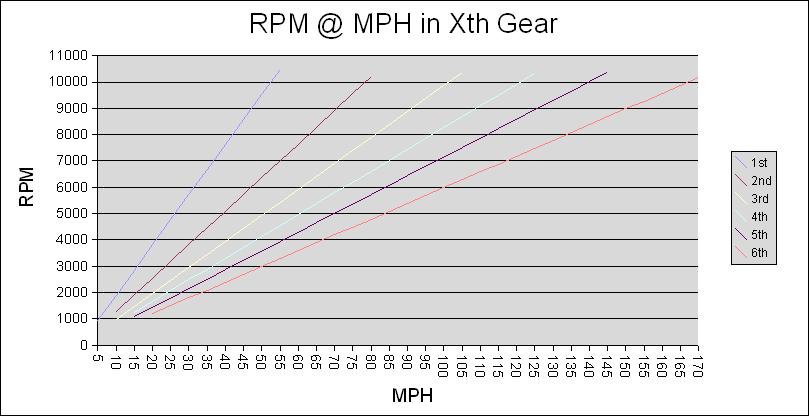

900<RPM<10.5k @ MPH in Xth Gear






MPH 1st 2nd 3rd 4th 5th 6th
5 952





10 1904 1274 986



15 2855 1911 1479 1240 1073

20 3807 2548 1972 1653 1430 1197
25 4759 3185 2465 2066 1788 1496
30 5711 3822 2958 2479 2145 1795
35 6663 4459 3451 2892 2503 2094
40 7614 5096 3944 3305 2861 2394
45 8566 5733 4437 3719 3218 2693
50 9518 6370 4930 4132 3576 2992
55 10470 7007 5423 4545 3933 3291
60
7644 5916 4958 4291 3590
65
8281 6409 5371 4648 3890
70
8918 6902 5785 5006 4189
75
9555 7395 6198 5363 4488
80
10192 7888 6611 5721 4787
85

8381 7024 6079 5086
90

8874 7437 6436 5386
95

9367 7851 6794 5685
100

9860 8264 7151 5984
105

10353 8677 7509 6283
110


9090 7866 6582
115


9503 8224 6882
120


9916 8582 7181
125


10330 8939 7480
130



9297 7779
135



9654 8079
140



10012 8378
145



10369 8677
150




8976
155




9275
160




9575
165




9874
170




10173


































Sheet 2: KPH
Concours Gearing Table – Mark Randol, June 2003






Data obtained from Kawasaki 1986-2000 service manual






If you find errors, contact me via the COG mail list






If you make changes, put your name on it so YOU can fix the errors!














Drive Ratios for Xth Gear 1st 2nd 3rd 4th 5th 6th
Primary drive ratio 1.73 1.73 1.73 1.73 1.73 1.73
Transmission gear ratio 3.07 2.06 1.59 1.33 1.15 0.97
Final drive ratio 2.71 2.71 2.71 2.71 2.71 2.71
total ratio 14.41 9.65 7.47 6.26 5.41 4.53









Wheel diameter Tire width Tire profile (%) Tire height Total diameter Total circumference
Rear wheel & tire circumference (mm) 406.4 150 80 120 646.4 2030.73








Speed (KPH) @ Gear ==> 1st 2nd 3rd 4th 5th 6th
red line 10500 88.77 132.64 171.38 204.49 236.29 282.38
hp peak 9500 80.31 120.01 155.06 185.01 213.79 255.49
Torque peak 6500 54.95 82.11 106.09 126.59 146.28 174.81
Idle (CA, 2000) 1200 10.15 15.16 19.59 23.37 27.01 32.27
kph/1000rpm
8.45 12.63 16.32 19.47 22.5 26.89








900<RPM<10.5k @ KPH in Xth Gear






KPH 1st 2nd 3rd 4th 5th 6th
10 1183





20 2366 1583 1225 1027


30 3549 2375 1838 1540 1333 1116
40 4731 3166 2451 2054 1777 1487
50 5914 3958 3063 2567 2222 1859
60 7097 4750 3676 3081 2666 2231
70 8280 5541 4289 3594 3111 2603
80 9463 6333 4901 4108 3555 2975
90 10646 7125 5514 4621 3999 3347
100
7916 6127 5135 4444 3718
110
8708 6739 5648 4888 4090
120
9499 7352 6162 5332 4462
130
10291 7965 6675 5777 4834
140

8578 7189 6221 5206
150

9190 7702 6665 5578
160

9803 8216 7110 5949
170

10416 8729 7554 6321
180


9243 7999 6693
190


9756 8443 7065
200


10270 8887 7437
210



9332 7809
220



9776 8180
230



10220 8552
240




8924
250




9296
260




9668
270




10040
280




10411



























Sheet 3: Knots
Concours Gearing Table – Mark Randol, June 2003






Data obtained from Kawasaki 1986-2000 service manual






If you find errors, contact me via the COG mail list






If you make changes, put your name on it so YOU can fix the errors!














Drive Ratios 1st 2nd 3rd 4th 5th 6th
Primary drive ratio 1.73 1.73 1.73 1.73 1.73 1.73
Transmission gear ratio 3.07 2.06 1.59 1.33 1.15 0.97
Final drive ratio 2.71 2.71 2.71 2.71 2.71 2.71
total ratio 14.41 9.65 7.47 6.26 5.41 4.53









Wheel diameter Tire width Tire profile (%) Tire height Total diameter Total circumference
Rear wheel & tire circumference (in) 16 5.91 80 4.72 25.45 79.95








Speed (Knots) @ Gear ==> 1st 2nd 3rd 4th 5th 6th
red line 10500 47.9 71.57 92.47 110.34 127.5 152.37
hp peak 9500 43.34 64.75 83.67 99.83 115.36 137.86
Torque peak 6500 29.65 44.31 57.25 68.31 78.93 94.33
Idle (CA, 2000) 1200 5.47 8.18 10.57 12.61 14.57 17.41
Knots/1000rpm
4.56 6.82 8.81 10.51 12.14 14.51

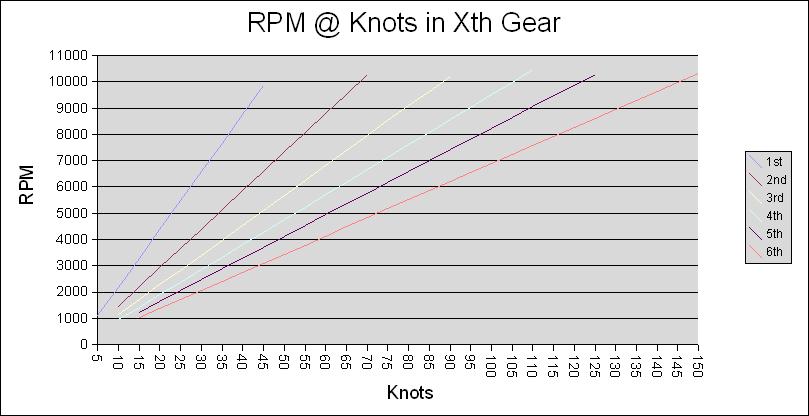

900<RPM<10.5k @ Knots in Xth Gear





Knots 1st 2nd 3rd 4th 5th 6th
5 1096





10 2192 1467 1135 952


15 3288 2201 1703 1427 1235 1034
20 4384 2934 2271 1903 1647 1378
25 5480 3668 2839 2379 2059 1723
30 6576 4401 3406 2855 2471 2067
35 7672 5135 3974 3331 2882 2412
40 8768 5868 4542 3806 3294 2756
45 9864 6602 5110 4282 3706 3101
50
7335 5677 4758 4118 3445
55
8069 6245 5234 4529 3790
60
8802 6813 5710 4941 4135
65
9536 7380 6185 5353 4479
70
10269 7948 6661 5765 4824
75

8516 7137 6176 5168
80

9084 7613 6588 5513
85

9651 8089 7000 5857
90

10219 8565 7412 6202
95


9040 7823 6546
100


9516 8235 6891
105


9992 8647 7236
110


10468 9059 7580
115



9470 7925
120



9882 8269
125



10294 8614
130




8958
135




9303
140




9647
145




9992
150




10336
